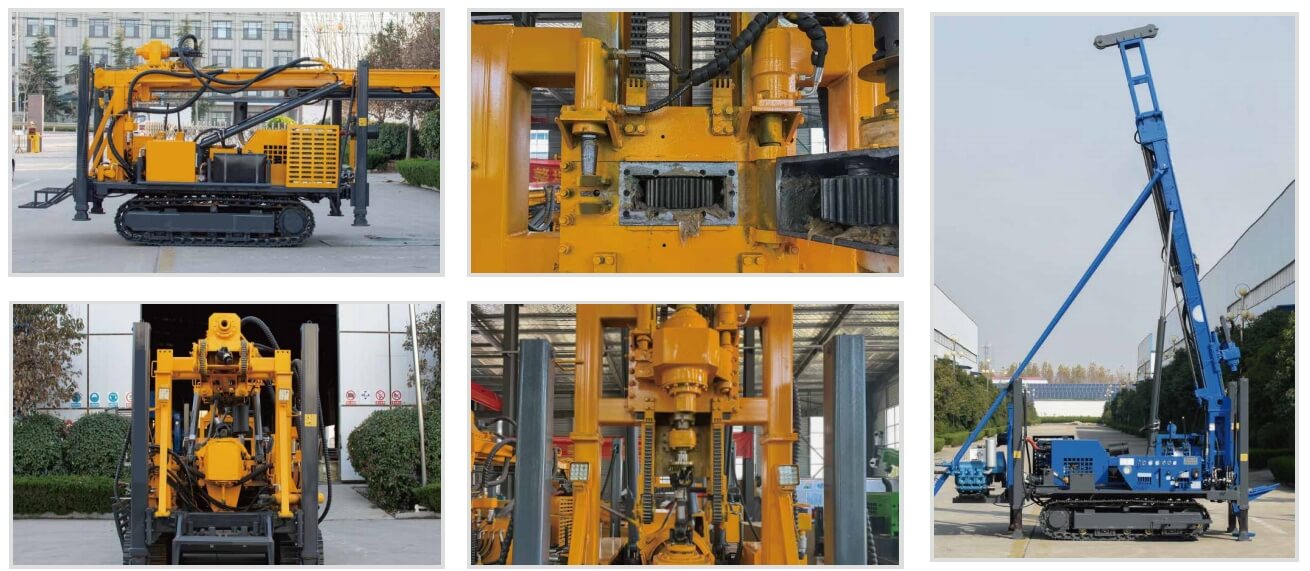

JDL350/XJDL350 Mechanical Top Drive Drilling Rig
JDL-350XJDL-350 mechanical top drive drilling rig is a dialing equipment independently developed by the company that can drl 90°and Integrates the functions of water drill and air dill(National Invention Patent: ZL201510479602.4). It adopts a 5-speed manual car transmission. with a wide speed range, sensible and convenient forward and reverse switching, high transmission efficiency, greatly reduced power energy consumption, and more efficient and energy-saving. It solves the difficulty of drilling with air down-the-hale hammers in sil layers and the low construction efficiency of rotary drilling rigs in hard rock layers, gravel, and pebble layers.
JDL350/XJDL350 Mechanical Top Drive Drilling Rig
| Rig type | JDL-350 | XJDL-350 |
|---|---|---|
| Weight | 6000kg | 7000kg |
| Dimension (transport) | 6300*2000*2600mm | 6300*2000*2600mm |
| Dimension(working) | 3800*2400*7600mm | 3800*2400*7600mm |
| Drilling angle | 90° | 75-90° |
| Drilling depth for water well | 350m | |
| Wireline coring N size | 600m | |
| Borehole(Drillbit)dia. | φ75-220mm | |
| Drill head liting force | 120kN | |
| Drill head feeding force | 85kN | |
| Rotary speed RPM | Forward:27-901rpm Reverse:48-219rpm | |
| Max.Torque | 10500N.m | |
| Drill head feed stroke | 3500mm | |
| Dill pipe dia. | φ60、φ76、φ89mm NQ/HQ/PQ | |
| Engine Model | YNG27 | YN27GBZ |
| Rated power/speed | 58kW/2400rpm | 65kW/2400rpm |
| Walking speed | 0-2km/h | |
| Climbing angle | 25-30° | |
| Mechanical winch capacity | 45kN | |
| Mud pump | BW160/BW200/BW250(Optional) | |
| Crawler chassis | Rubber 300mm*38 | Steel 400mm*40 |
| Crawler load | 6000kg | 8000kg |
Trusted Deep Well Drilling Machine Quality and Reliable Service | Sollant
Water Drilling Project and Customers
In March 2019, Colombian's regular customers come to visit Sollant water drilling rig workshop, we provide him with a complete agency plan.
In September 2019, Shandong Technology University came to discuss cooperation. We have been working with China's well-known universities of science and technology to jointly develop new models.
In December 2019, government officials from many countries in Southeast Asia came to discuss the water well drilling rig project.
Keep us Update on Latest Deep Well Drilling Machine Newsletter
Pneumatic Deep Well Drilling machine for Deeprock Deep Well Drilling Machine
When it comes to deep well drilling, you have to be well-equipped. You should have the right water well drilling equipment that will penetrate through the deep rocks until you reach the water table.
Deep well drilling also comes in handy when you want to increase the depth of your water well. Maybe you are not getting enough water from the well and you want to increase its capacity. You will have to dig deeper using the best deep rock drilling rigs.
Read on as we explore various aspects of a pneumatic deep well drilling machine. You will understand the importance of buying this water well drilling machine in China.
How deep should a water well be?
The first question that you will always ask a water well driller is how deep should the water well be?
Geological studies have to be carried out before the actual well drilling process commences.
In some areas, the water table may be near and this will ultimately lead to a shallow water well. In others, you will have to drill deeper which automatically results in deep water well.
So, if you have the chance, which option will you go for between deep water well vs shallow water well?
Shallow and deep water well are relative terms. You can only reach a conclusion when you are comparing one water well to another.
In short, there is no specified calibration of deep water well. All that matters is the geological properties of a particular area.
This is because water well may seem deep in one area but shallow in another area.
The most critical aspect when it comes to the depth of the water well is how far the casing extends deep the water table.
A casing is a steel structure that serves as a well lining when drilling the water well. It prevents the water well from caving in during the drilling process.
However, the fact remains that water well depth determines the quality and quantity of the water that is pumped from any well.
You are likely to get a large quantity of water from a deeper well than from the shallow one. The same may also apply when it comes to the quality of water that you will get from the well.
The quality factor comes in when you want your water well to be free from pollution and contaminants. With shallow wells, all the chemicals and contaminants from the neighboring areas will easily find their way to the water well. When this happens, the quality of the water will automatically degrade.
The quantity aspect of the water well comes in whenever the water table goes down. During dry seasons, the water table in any particular area is likely to go down. If the water well is not deep enough, it will not have enough water to match the demand. But with deep water well, you will always have adequate water throughout the seasons.
Understanding the Pneumatic Deep Well Drilling Rig
What does a pneumatic deep well drilling rig mean? This is a question that you are likely to ask when looking for a deep rock well drilling machine.
A pneumatic drill is a portable well drilling machine that is powered by compressed air. It is also known as a jackhammer water well driller.
The hammer of the drilling machine is driven by streams of compressed air. This air is supplied from a small air compressor which is driven by an engine. In most cases, the air compressor is trailer-mounted hence enhancing its portability.
Pneumatic drilling machines utilize the power of the compressed air to achieve deep depths when drilling the water wells. This air controls the mechanical movements of keep drilling components until you attain the target depth.
A pneumatic deepwater drilling machine works in the same way as a chisel and hammer. This is to imply that it punches with a bit and not with a rotation like other drilling rigs. Each time that the compressed air is delivered it punches through the rock.
The power of the compressed air is the reason why pneumatic drilling machines are known for their high performance. They can drill through hard rocks and other technical areas where an ordinary drilling machine may not penetrate.
Pneumatic deep well drilling rigs are also preferred for their versatility. Other than drilling, they perform other functions such as countersinking, reaming, and tapping the water wells. They can be used on both small and large boreholes and water wells.
By looking at the way that they operate, you can tell that a pneumatic water drilling machine is noisy and violent. To curb this problem, deep water drilling rig manufacturers design machines to minimize the disturbance on the operators.
What are the advantages of a pneumatic deep well water drilling rig?
You may be wondering whether to buy deep rock drilling rigs for sale but you are not sure whether it is the best fit for the job.
Here are top reasons that can convince you to buy a deep rock drilling rig for sale:
Powerful for deep drilling
A deep rock water drilling rig is designed for top-level performance. This is because they are powerful and have enough torque to drill through all types of rocks.
The fact that deep well water well drilling calls for performance leave the water drill manufacturers with no other option but to optimize the equipment for power.
When it comes to drawing a comparison, pneumatic deep well boring machines are powerful than electric-powered drilling machines.
The greater the torque of the drilling machine, the deeper it will drill. So, you can sure of getting the best performance from pneumatic water drilling equipment for sale.
Lightweight and portable well drilling machine
Are you looking for a portable water well drilling machine? You should consider getting a pneumatic deep rock drilling machine for sale.
This drilling equipment has a nimble design and is lightweight hence easily portable. You can easily mount the machine onto a trailer and transport it to the required destination for water well drilling.
The convenience of transportation makes it easy to match the drilling machine with a portable air compressor. The small and light properties of this deep rock water well drilling machine also makes it easy to handle and use. The operators won’t be overwhelmed by the bulky and complicated nature of the equipment.
Versatile and Multifunctional
Can I use a deep rock hydra drill for other purposes other than well drilling?
Yes, deep well drilling equipment can be used for other purposes other than water well drilling. You can use them for geothermal applications, coring, and soil surveys.
The ability of this equipment to drill through different types of rocks is the main reason behind their versatility. So, if you would like to achieve other drilling goals in other areas of application, then you should consider getting this deep rock drilling rig for sale.
Different drilling depths
What depth would you like your water well to achieve? Even when it comes to deep water well drilling, you still have to consider the different depths that you should achieve.
The good thing about a deep well drilling machine is it can achieve different depths. You can use it for drilling both deep and shallow water wells.
The drilling rig can drill water wells of 180m, 280m,400m,500m, and 800m depending on the needs of a client.
Such versatility eliminates the need to get different water well drilling equipment for different depths.
Easy to operate and maintain
A desirable feature about pneumatic deep rock water drilling equipment is they have very few moving parts. This means that using and maintaining them won’t be a difficult task that you won’t be able to achieve with ease.
They are also easy to use since the operator will not have to deal with many components at a time. The ease of use eliminates the cost of training operators to use the drilling equipment.
Can be used in different environments
The operation of a pneumatic deep well drilling machine is not limited by the environmental conditions. They can be used in a wet and moist environment. Achieving this goal with an electrical drilling machine can be quite a hectic process.
Also, pneumatic water well drilling rigs are widely applicable in rural areas that are not easily accessible to electricity. Most deep water drilling in Kenya and water drilling equipment in the Philippines are mainly found in rural areas of the countries.
Economical to operate
Are you worried about the cost of a deep well drilling machine in China? Rather than just focusing on the price of the drilling equipment, you should also look at the cost of using it.
The fact that these drilling machines don’t have electrical motors makes them cheaper to use than the electric drilling machines.
You will not have to deal with the cost of electricity that will be required to run the drilling machine. In addition to the operation cost, these drilling machines are cheap to maintain!
How to buy the best deep well drilling machine?
Do you think a top deep well drilling machine is the best solution for drilling your water wells? If so, then you should aim at buying the best equipment in China.
There are various factors that you should consider when it comes to choosing the drilling rig.
One of them is the depth capability of the drilling rig. How deep can the machine drill? The fact that it is a deep rock drilling machine should not make you assume its specifications. Be keen to verify its specifications.
You should also verify the issue of portability. How portable is the deep rock drilling rig for sale? The portability will help you know the ease of moving the drilling equipment around.
Find out whether the portable drilling machine can be easily mounted onto a trailer or you will need a crane to do so.
You should also consider the price of a deep well drilling machine that you want to buy. Does the price fall within your budget or is the machine beyond your reach.
Even if your goal is to get cheap well drilling equipment in China, ensure that you get the best deal. Check if the features of the deep well drilling machine match with the price.
Verify the deep rock well drilling price with the manufacturer so that at the end of the day you get exactly what you are paying for.
Deep Well Drilling Machine Manufacturers in China
After taking all the factors into deep consideration, you should not ignore the issue of where to buy the deep rock hydra drill.
Choose the best deep well drilling machine manufacturer and you will get the best machine. The reverse is true if you are not very careful with the manufacturer that you choose.
At Sollant, we are among the best deep rock drilling rigs manufacturers in China. We develop high-tech drilling equipment that will meet your deep well drilling needs.
Contact us for quality drilling rigs at the best price.
Bottom Line
One thing that you can be sure about deep rock well drilling is they will serve their purpose in all conditions. You can use them for drilling both on soft rocks and deep rock areas. You will find them useful especially when the conditions are not very friendly as per your expectations.
Buying deep well drilling equipment is a big step that requires you to take calculated moves. You need to know the exact equipment that you want.
Take a deep look at all the features of the deep rock well drilling and choose the one that will match your drilling needs.
For example, if you want drilling equipment that you can easily move around with, you will choose a portable well drilling machine.
The constant rule of thumb when it comes to buying deep well water rigging equipment is choosing the manufacturer in China.
Scout for experienced and reliable manufacturers that sell quality and reliable water drilling equipment for sale.
Once you achieve this, everything else will fall into a perfect position: You will get the best pneumatic deep water well drilling rig that will match your ultimate drilling needs.
