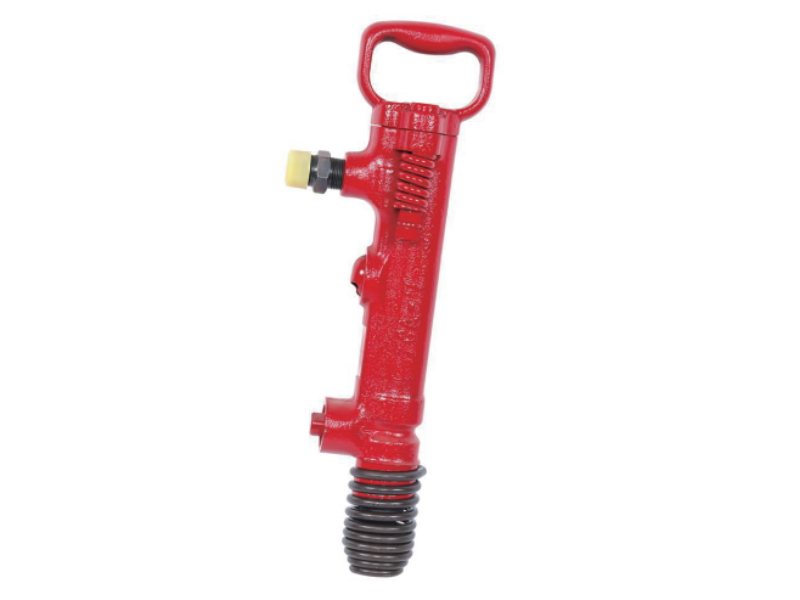

TCA-7 Air Pick
TCA-7 Air Pick driven by compressed As a small breaking tool. it is lightweight. convenient operation. auto stop after the object is broken. It is widely used in mining coal, and soft rock, digging pits for post brackets, digging slots, breaking concrete, and frozen earth in construction and installation engineering, or constructing work in casting industries.
| Model | Piston Diameter mm |
Piston Stroke mm |
Pereussive Freguency b.p.m | N.W kg |
Length mm |
Air Consumption m3/min |
Air Tubelnner Diameter mm | Bit head size mm | Air inlet P/T |
| TCA-7 | 35 | 120 | 1250 | 7.2 | 465 | 1.0 | 19 | R26 x80 | 3/4 |

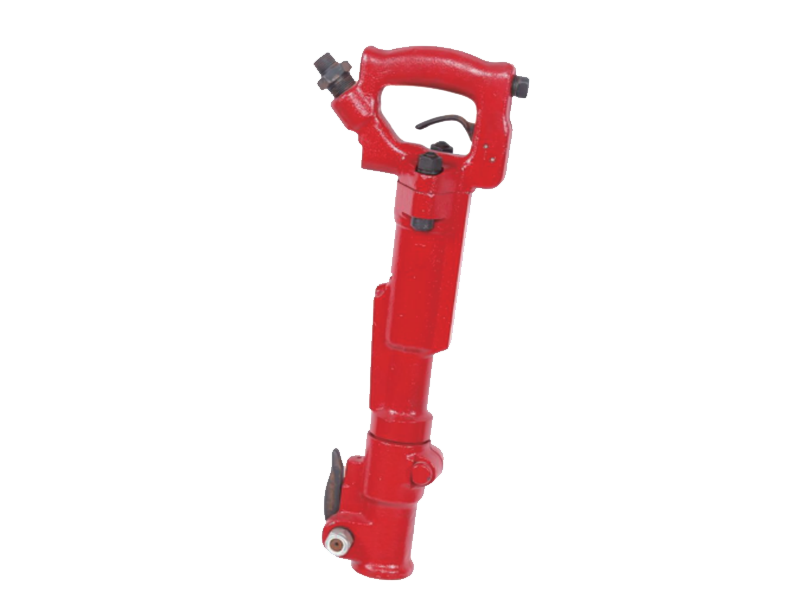

TCD-20 Air Pick
TCD-20 Air Pick adopts Japan TOKU technology, driven by compressed air broken tools, features: light weight, small size, overall forging, difficult to damage, can be full of work for confined space operations, and allows you to ease.
| Model | Piston Diameter mm |
Piston Stroke mm |
Pereussive Freguency b.p.m | N.W kg |
Length mm |
Air Consumption m3/min |
Air Tubelnner Diameter mm | Bit head size mm | Air inlet P/T |
| TCD-20 | 42.85 | 60 | 2000 | 10.0 | 520 | 1.1 | 19 | R26 x80 | 3/4 |
G10 Air Pick
G10 air pick is suitable for crushing works on rock and concrete, etc, especially for crushing the solid concrete ground in a city basic building project, demolishing walls, cutting and crushing the black and white roads in road and pipeline buildings, and repairing the convenient road, chisel out the road, other similar crush task field like quarrying, etc.
| Model | N.W kg |
Length mm |
Percussive Energy |
Percussive Frequency Hz | Air Consumption L/S | Bit Fixation Style | Bit Head Size Mm | Air Tube Lnner Diameter Mm |
| G10 | 10.5 | 575 | >=43 | 16 | 26 | ( Spring clip) | R24x70 | 19 |

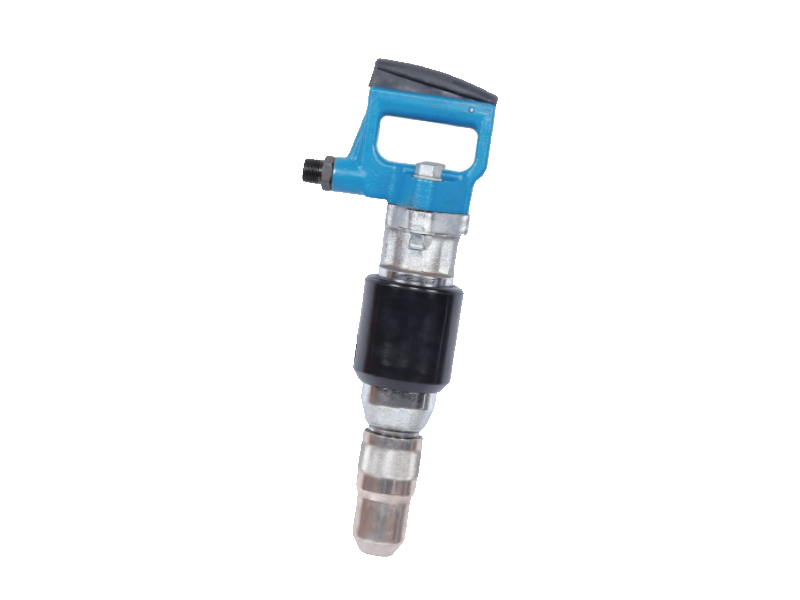

SK-10 Air Pick
SK-10 type air pick is a handle air power tool, that uses compressed air to push the piston reciprocating motion and make the pick head continue to impact the working object. SK-10 type airpick used in mining and building, etc. The air pick formed with the air supply mechanism, impact mechanism pick bore, etc.
| Model | N.W kg |
Length mm |
Percussive Energy |
Percussive Frequency Hz | Air Consumption L/S | Bit Fixation Style | Bit Head Size Mm | Air Tube Lnner Diameter Mm |
| SK-10 | 10 | 495 | >=45 | 21 | 17 | ( Screw clip) | R24x70 | 19 |

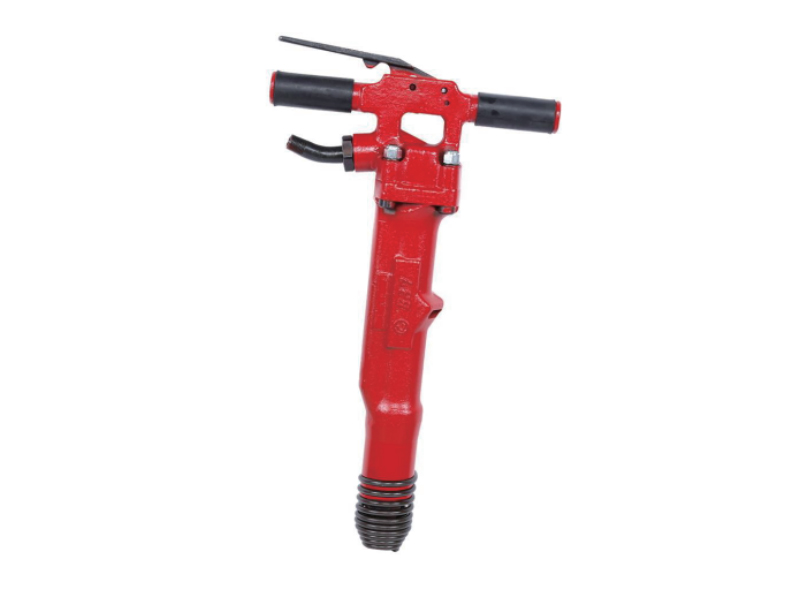

B37 Air Pick
B37 Brake features light weight, simple structure, features, large impacting force, high speed, and efficiency. The products are widely used in construction mines, bridges roads, and so on.
| Model | Piston Diameter mm |
Piston Stroke mm |
Pereussive Freguency b.p.m | N.W kg |
Length mm |
Air Consumption m3/min |
Air Tubelnner Diameter mm | Bit head size mm | Air inlet P/T |
| B37 | 44 | 145 | 1050 | 17 | 580 | 1.8 | 19 | R30 x87 | 3/4 |

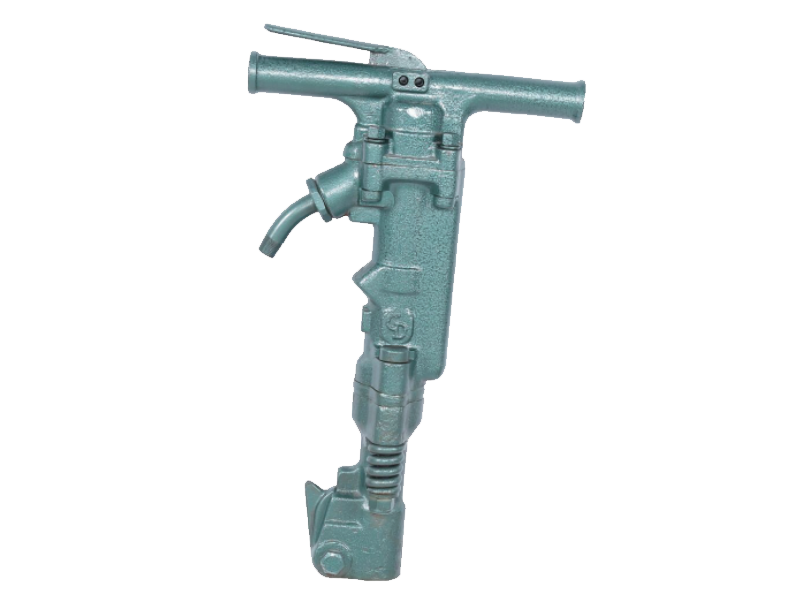

B47 Air Pick
B47 Breaker adopts the mature technology of American Chicago Pneumatic Corporation and advanced double-hammer design. The hammer is driven by compressed air to toandfro and the cushioned hammer impacts the drilling tool. The breaker features portability, high impact frequency, and high working efficiency.
| Model | Piston Diameter mm |
Piston Stroke mm |
Pereussive Freguency b.p.m | N.W kg |
Length mm |
Air Consumption m3/min |
Air Tubelnner Diameter mm | Bit head size mm | Air inlet P/T |
| B47 | 47.6 | 100 | 1400 | 21.5 | 550 | 1.6 | 19 | R25 x105 | 3/4 |
